RS Series Resistance Level Meter Resistance Position Switch Level Switch
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | RS Series Resistance Position Switch |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Power Dissipation | Consumption /4W | 2.Working Voltage | 24VDC (output Ripple Less Than 100 MVp-p) 220VAC 50 / 60 HZ |
|---|---|---|---|
| 3.Output | SPDT Single Knife Double Throw Relay Output | 4.Levels Of Protection | IP65 |
| Highlight | RS Series Level Meter,IP65 Level Meter,NEPSI Resistance Position Switch |
||
Product Description

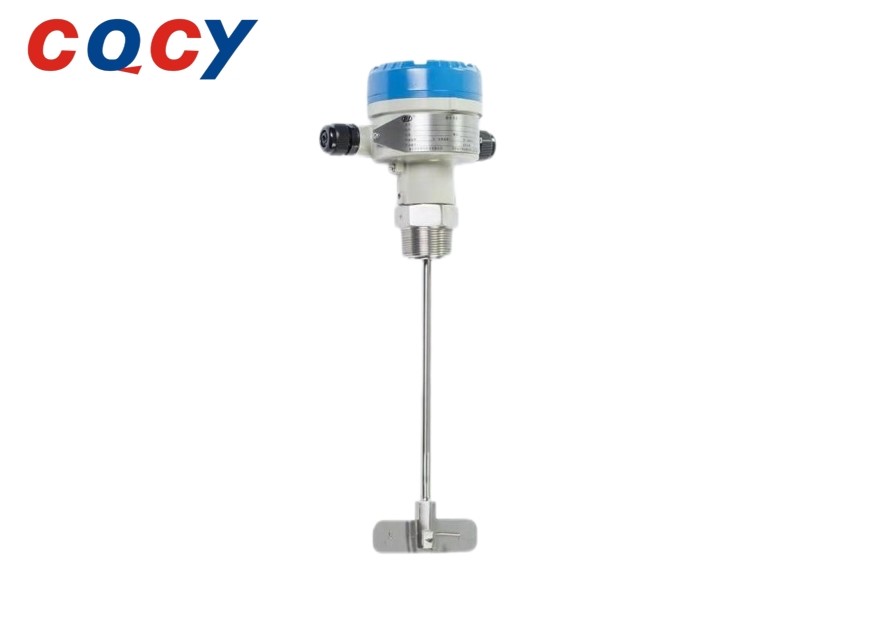

RS Series Resistance Position Switch (level switch /Can prevent dust infiltration along the axis)
RS series rotation switch, using the synchronous motor through deceleration gear shaft and blade rotation, when measured solid material contact or cover the blade, the blade rotation blocked, the resistance through the shaft to the instrument internal detection device, detection device output a switch signal, and cut off the motor power to make the blade stop rotation.
Product characteristics:
1. Bearing support for reliable operation.
2. The original seal design can prevent dust infiltration along the axis.
3. The torsion is stable and reliable, and the torsion size is adjustable.
4. The blade bears heavy load, and the clutch automatically slips and protects the motor from damage.
5. You can easily inspect and repair the internal parts without removing the whole instrument.
6.IP65 design, good sealing, reliable outdoor installation and use.
