GMS Microwave Object Position Switch 220VAC Standard Input
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | GMS microwave object position switch |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1. Power Supply Voltage | 220VAC Standard Input: 200~270VAC Available, 50~60Hz24VDC Standard Transmitter: 18~36VDC, Ripple Voltage 100 MVp-p | 2. Material Temperature | Use Over 700℃ |
|---|---|---|---|
| 3.Power | <5VA | 4. Function | It Can Be Used For Free And Free Testing Of Solid And Liquid Materials, The Use Of A Position Meter In Non-metallic Tanks Is Intended To Benefit The Environment And Operator Safety, The Instrument Is Not Included In The 0 SHA Or FCC Installation Regulation |
| 5.Microwave Signal | Frequency: 10.525GHz | 6.Levels Of Protection | IP67 |
| Highlight | GMS position switch,Microwave Object position switch,GMS Switch 220VAC |
||
Product Description

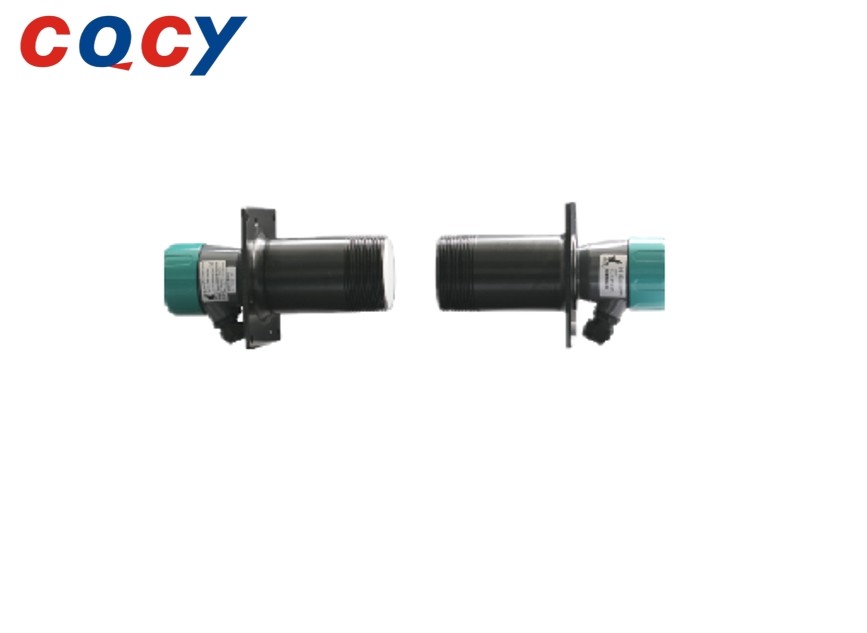

GMS Microwave Object Position Switch (Microwave object position switch)
GMS microwave position switch is composed of three electrical isolated units: transmitter, receiver and amplifier, and transmitter and receiver are installed in pairs. In order to obtain good performance, we must ensure that the receiver and transmitter are installed firmly and strictly opposite.
1. Maximum range range: 100m
2. The selection of installation location is required without special approval
3. No cable connection between the transmitter and the receiver
4. Low-cost installation and connection
5. Flexible power supply: 220VAC, 24VDC
