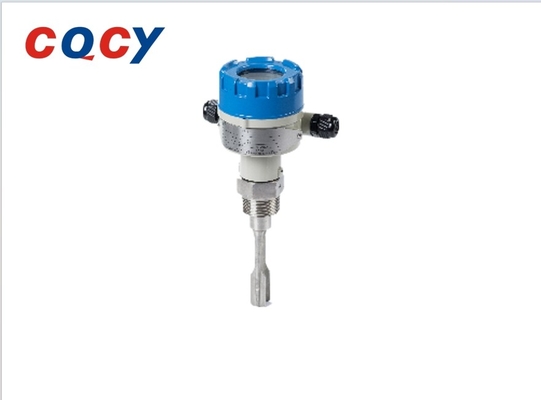

IP67 VS Series Tuning Fork Bit Switch Limit Switch Liquid Short Fork 1200Hz

VS series tuning fork bit switch(limit switch /bad environment also has no effect on the testing)

    VS series sound switch is a universal position limit switch. Under the excitation of piezoelectric ceramics, the stainless steel sound also vibrates at its resonant frequency. When the measured material contacts and gradually immerse the sound, the vibration frequency and amplitude of the sound will gradually change, these changes will be converted by the electronic unit after detection and processing, to achieve the purpose of indication or control.

1. Strong adaptability: different dielectric constant and density of the measured materials have no impact on the measurement, and scaling, agitation, turbulence, bubbles, vibration, high temperature, high pressure and other harsh environments have no impact on the detection:

2. Maintenance free: because the detection process of sound and position switch is completed by electronic circuit with no active parts, no maintenance is installed and put into operation: 3. No adjustment: Because the detection of sound and position switch is not affected by the electrical parameters and density of the measured medium, no matter what kind of medium is measured requires site adjustment.
