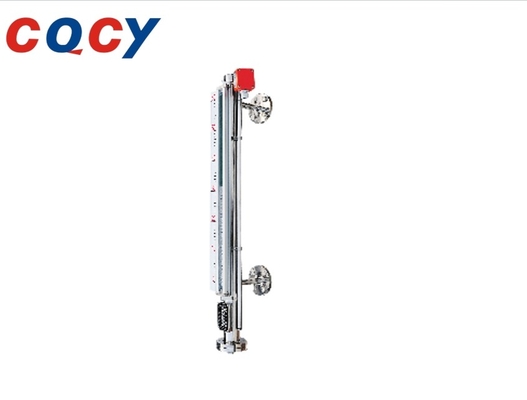

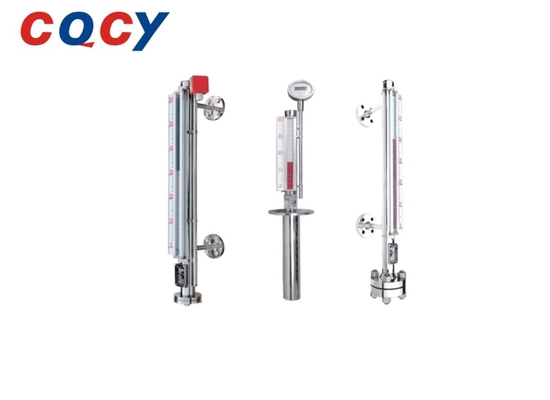

MB Series Level Meter Inflammable Flip Level Gauge -190C To 425C Strong And Weak Corrosion

 MB Series Flip Level Gauge (-190~+425°C/Strong and weak corrosion, inflammable and explosive, toxic, strong radioactivi

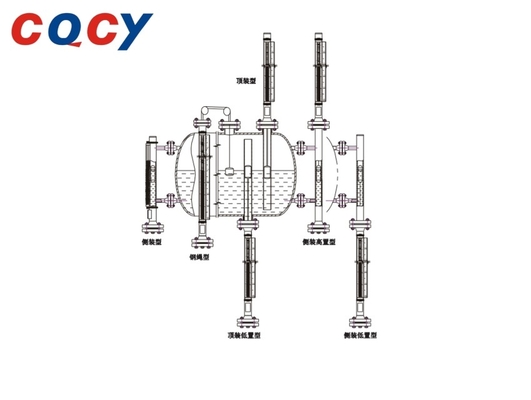

   MB series magnetic flip level meter adopts the connector principle to connect the container through the gas phase and liquid phase link flange. According to the buoyancy and magnetic coupling of the original
Furthermore, the magnetic float in the measuring cylinder (i. e., the connector) drives the increase (decrease) on the external display of the measuring cylinder
change. When the liquid level rises, the magnetic float drives the roll for 180°, showing red or green; when the liquid level drops, the magnetic float drives the roll
Reverse rotation for 180°, showing white. The height of the red band (or green band) is the height of the tested liquid level, which realizes the measurement and display of the tested liquid
The pose of the (bound) surface position.
Each flip plate is a two-color axial symmetric structure with 10mm spacing between the two flip plates in white and red (green), respectively
Part and liquid phase part, red (or green) and white junction is the liquid phase and gas phase boundary. The level gauge can measure both the level and level
Interface of two media with different density.

Product characteristics:

1. Simple structure, strong and reliable, durable, almost no maintenance workload, can be installed and used outdoors for a long time;
2. The measured medium is completely isolated from the display part of the liquid level meter, the liquid level sensor and the magnetic switch;
3. Wide working pressure range, withstand pressure from vacuum to 42MPa;
4. Wide working temperature range, applicable to the range from-190~ + 425 C:
5. Not affected by the physical and chemical state of the measured medium. Such as: the conductivity of the medium, dielectric constant, foam, pressure, temperature, evaporation, boiling, bubbles and other effects. Widely used in all kinds of strong and weak corrosion, flammable and explosive, toxic, strong radioactive, stirring, dirty liquid surface and interface measurement;
6. Optional single cut single throw (SPST), single cut double throw (SPDT) passive bistable magnetic switch to realize high and low liquid level, interface control or report.
The number of magnetic switches is not limited.
7. Optional dry clarinet liquid level sensor or capacitive second-line liquid level sensor, magnetic strictive liquid level transmitter, output 4 ~ 20 m ADC (or with HART protocol) signal, to achieve long-distance centralized measurement and control.
8. Line liquid level sensor can be equipped with LED digital display for night observation.
