MGS Series Guide Wave Radar Bit Meter High Frequency Pulse Signal
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | MGS Series Guide Wave Radar Bit Meter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1. Output | DPDT Double Knife Double Throw Relay Output 8 MA / 16 MA Two-wire Output | 2. Power Dissipation；consumption | <0.8w@24VDC<5VA@240VAC |
|---|---|---|---|
| 3.working Voltage | 18~36VDC (output Ripple Less Than 100 MVp-p) 90~265VAC50 / 60Hz | 4.levels Of Protection | IP65 |
| Highlight | MGS Series Radar Meter,Radar Meter High frequency,Bit Meter High frequency |
||
Product Description

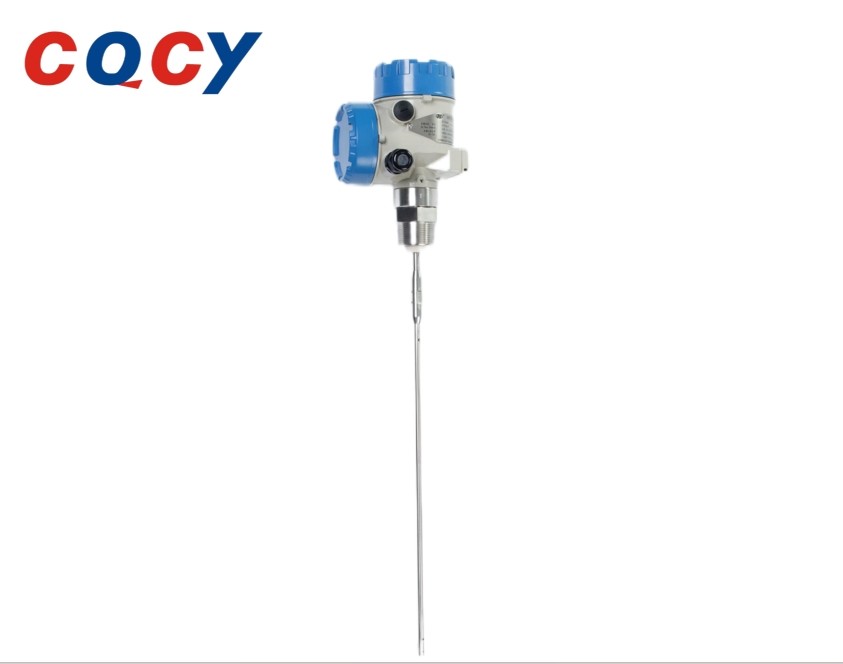

MGS Series Guide Wave Radar Bit Meter (Guide wave radar bit meter/High frequency pulse signal)

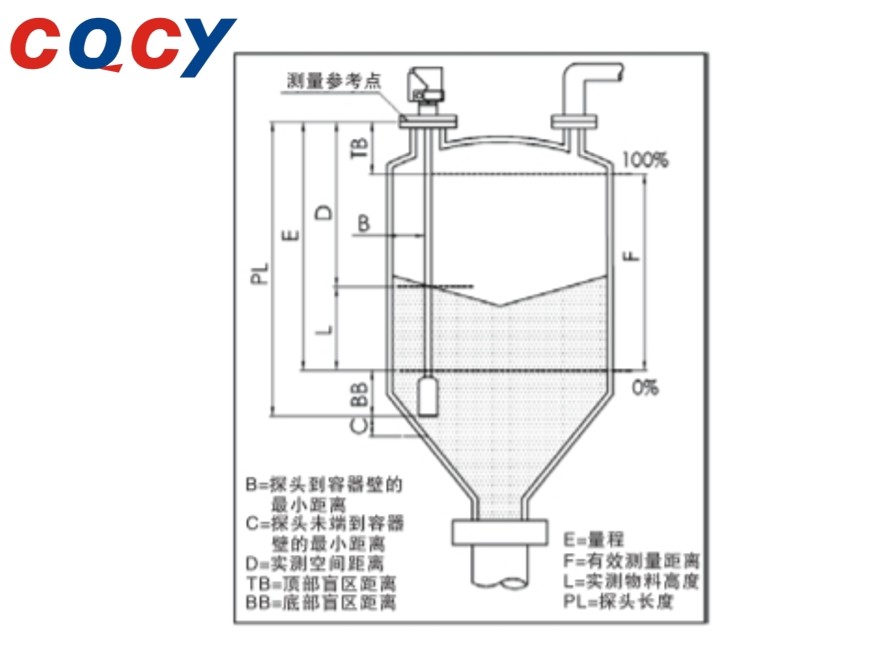

MGS series guided wave radar bit meter is a "overlooking" measuring instrument based on the ToF travel time (Time of Flight) principle. The high frequency pulse signal is transmitted to the probe and propagated along the probe. When encountering the material surface, the reflected signal returns along the probe and is received by the instrument.
Product characteristics:
1. Measurement is not acceptable. Liquid density, the loose degree of the solid material. Temperature-dust-vapor factors
The foam on the liquid surface had no effect on the measurement
2. Chinese menu, convenient and intuitive to operate
3. The measurement of the coaxial rod probe is completely unaffected by the internal structure of the material tank and the installed riser.
4. Easy to probe rod and cable replacement.
