MPS3000 Series Pulse Radar Level Meter Measuring System No Blind Area High Precision
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | MPS3000 Series pulse radar bit meter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Measurement Accuracy | 3mm Or 0.1% | 2.Process Pressure | -1~40 Kgf/cm2 |
|---|---|---|---|
| 3.Process Temperature | -40℃~400℃ | 4.procedure Linkage | Flange |
| 5.Apply | Fluid Measurement Under General Working Conditions | 6.levels Of Protection | IP65 |
| Highlight | MPS3000 Series radar level meter,IP65 radar level meter,IP65 radar flow meter |
||
Product Description

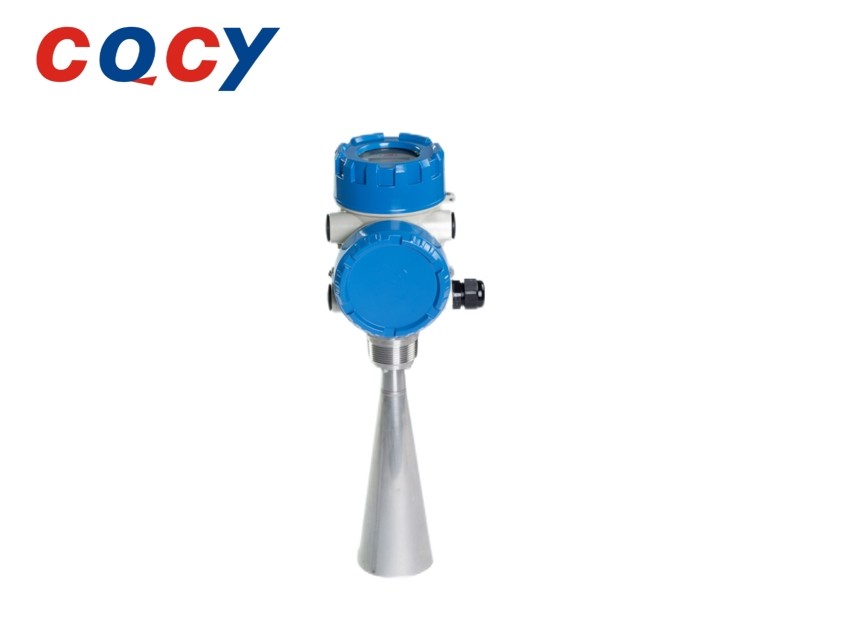

MPS3000 Series Pulse Radar Bit Meter (Top-view measuring system/No blind area high precision)
MPS3000 Series pulse radar bit meter is a " overhead measurement system based on the time stroke principle. The instrument transmits a micro-power microwave pulse of 1 mW from the radar antenna (such as 26G frequency radar, that is, a ^ t-1 nS pulse, 26GHz sine wave signal), which travels in space at the speed of light and touches the surface of the measured medium, and part of its energy is reflected back and received by the same antenna. The time interval between the emitted pulse and the receiving pulse is proportional to the distance of the antenna to the surface of the measured medium.
Product characteristics:
1.No blind spot high precision, two-line system technology, is the differential pressure, magnetic strictive, RF conduction, magnetic flip and other level instrument alternative products.
2.It is not affected by pressure change, vacuum, temperature change, inert gas, smoke, steam and other environment, and the measurement results are stable and reliable.
3.Dual CPU, stronger hardware processing capacity, more intelligent algorithm, more stable system.
4. Double warehouse case, standard with magnetic keys, high protection level.
5. Special manual operators, which support remote debugging and diagnosis.
6.Standard anti-surge protector, level 4 electromagnetic compatibility
7.Suitable for high temperature working conditions, up to 150℃ process temperature, when using high temperature extension antenna can reach 350℃.
8.The instrument graphic lattice LCD supports complex operations such as field waveform display and false echo establishment.
9.The liquid crystal display unit can be connected to 50m (12C) and 2km (HART), so as to form the.
10.display operation unit next to the tank and reduce the large tank and high temperature Risk and labor intensity of daily inspection of instruments in high pressure and toxic areas.
