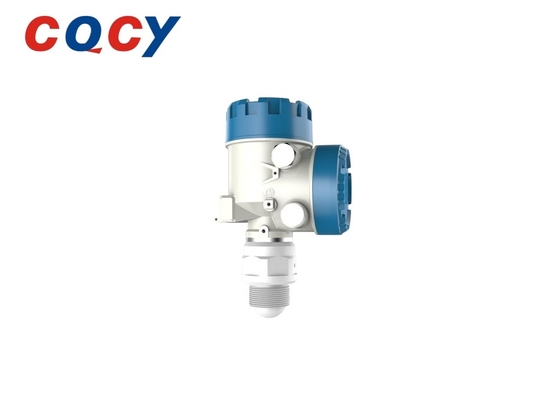

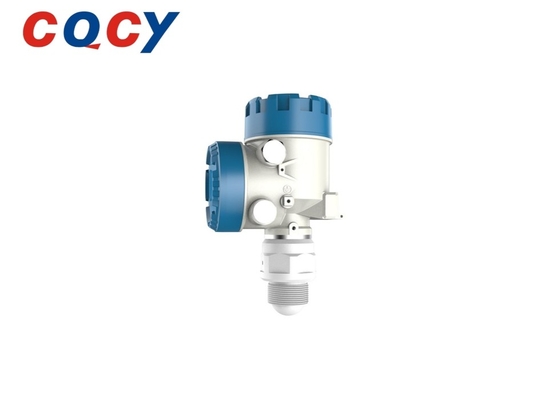

MPS5100 Level Meter radar meter W band 80GHz FM continuous wave radar Liquid media
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | MPS5X00 Series radar bit meter is W band (80GHz) |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1. Process Temperature | -40~130℃ (plastic Horn) / -40~200℃ (rod Type） | 2.Process Pressure | /-1...16bar (stick Type) / -1..2bar (plastic Horn） |
|---|---|---|---|
| 3. Procedure Linkage | Threaded Or Flange | 4.Apply | Corrosive Liquid In Small Containers |
| 5.Measurement Accuracy | 2mm | 6.Signal Output | 4~20 MA/HART |
| 7.Signal Frequency | W-band (approximately 80GHz) | ||
| Highlight | MPS5100 Level Meter,Level Meter W band,80GHz radar meter |
||
Product Description
MPS5100(80G STICK) radar bit meter is W band (80GHz) FM continuous wave radarLiquid media and a solid med,bit meter
MPS5X00 Series radar bit meter is W band (80GHz) frequency-modulation continuous wave radar bit meter, which is suitable for continuous bit measurement of various liquid and solid media, with a maximum range of 120m.
Product characteristics:
1. The display interface is easy to understand, and the quick setting menu is easy for users to operate
2. Local parameters can be set through buttons or through Hart dedicated hand operators
3. Chinese menu display is convenient for users to operate
4. Using 80GHz high frequency signal, the minimum process connection can be up to G3 / 4, and the minimum narrow beam Angle can be up to 3, which is convenient for the near end of the instrument almost no blind area, and can realize accurate measurement of small containers
