Power Plant Nozzle Flowmeter High Flow Rate High Temperature Flow Nozzle Flow Meter
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | Nozzle Flowmeter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Medium Temperature | -196℃~600℃ | 2.Pressure Grade | 0.25MPa~42MPa |
|---|---|---|---|
| 3. Accuracy Class | 1.0 | 4.Diameter Range | DN50~DN1200 |
| 5.levels Of Protection | IP67 | ||
| Highlight | Power plant Nozzle Flowmeter,Nozzle Flowmeter high flow rate,high temperature flow nozzle flow meter |
||
Product Description

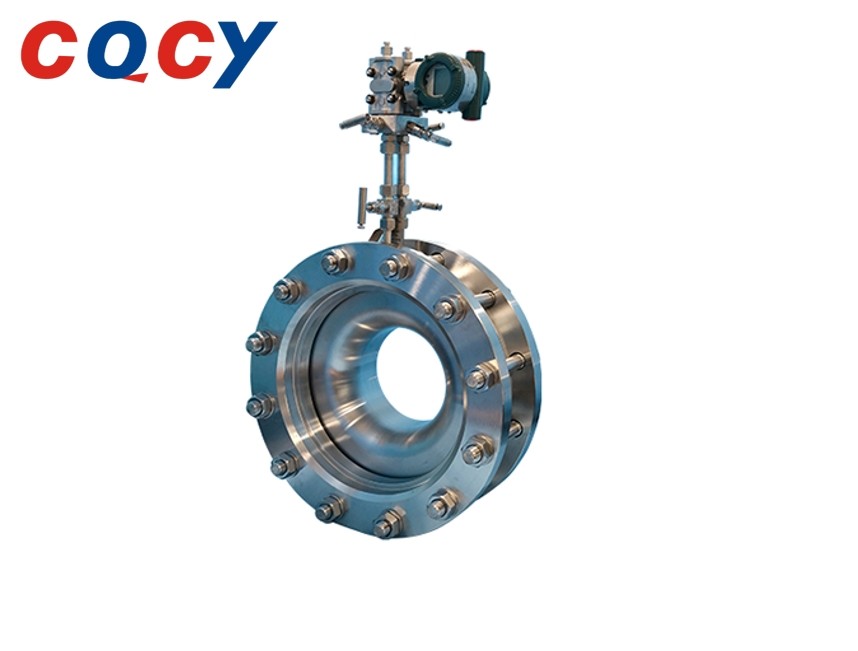

Nozzle Flowmeter (Power plant and other high temperature and high pressure steam heat network pipeline high flow rate
Nozzle flowmeter is based on the throttle principle of fluid mechanics, through the local contraction before and after the nozzle pressure difference, and measures the fluid flow by measuring the pressure difference. The mouth has the advantages of high temperature resistance, impact resistance, long service life and large measurement range. It can be applied to measure the fluid flow rate of high temperature and high pressure steam heat network pipeline in power plant.
1.Simple structure and convenient installation.
2.Resistance to high temperature, high pressure, and impact.
3.High corrosion resistance and long service life.
4.High accuracy, good repeatability, and stable discharge coefficient.
5.Integral forging (no tailor-welding) and integral CNC machining.
