MFD Slurry Type Electromagnetic Water Meter Electromagnetic Tester Meter For Paper Pulp Mud
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | MFD seriflux type electromagnetic flowmeter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1. Diameter Range | DN25~DN400 | 2. Medium Temperature | -25°C-180°C(non-explosion-proof) |
|---|---|---|---|
| 3. IP Rating | IP67 | 4.Accuracy Class | 0.5 |
| 5.Rich Display Content | Can Display The Total Amount, Instantaneous Flow Rate, Flow Rate, Percentage Flow Rate And Other Content | 6.The Response Speed Is Fast | The Response Speed Is 0.8s, With An Adaptive Damping Coefficient. |
| Highlight | electromagnetic water meter,electromagnetic water meter for paper pulp,electromagnetic tester meter for mud |
||
Product Description

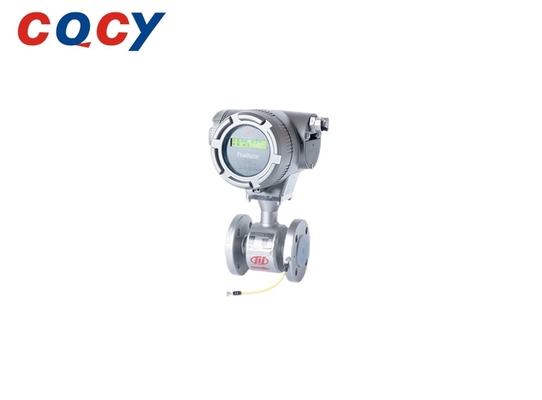

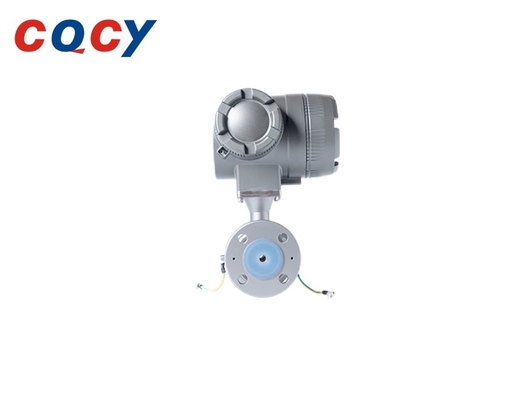

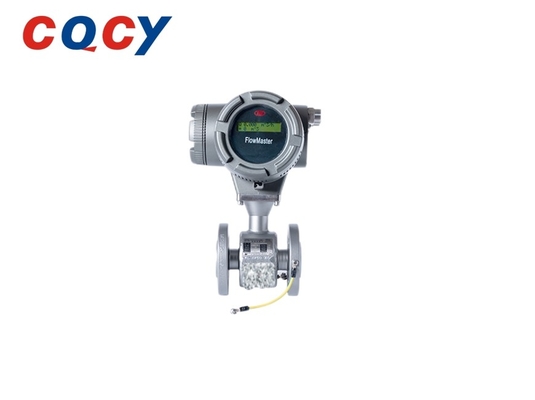

MFD Slurry Type Electromagnetic Flowmeter (Measure paper pulp, mud, mine slurry and coal water slurry)
MFD slurry type electromagnetic flowmeter is designed for measuring pulp, mud, slurry and coal water slurry. The product adopts multi-frequency excitation method, effectively improve the anti-slurry acoustic signal ability, good stability, easy operation, the measured concentration is up to 5%~10%.
Product features:
1.High concentration of measurement medium: multi-frequency square wave excitation mode to ensure the accuracy and sensitivity of measurement.
2.Fast response speed: the response speed is 0.8s, with the damping coefficient adaptive ability.
3.Low conductivity requirements: due to the medium viscosity, temperature, pressure, density and other small influence, the liquid with 2 uS / cm conductivity can be measured.
4.Strong anti-interference ability: unique noise processing technology, digital filtering, can filter the interference of the dirt attached to the pipeline and electrode.
5.Display content is rich: can display the total amount, instantaneous flow, flow rate, percentage flow and other content.
