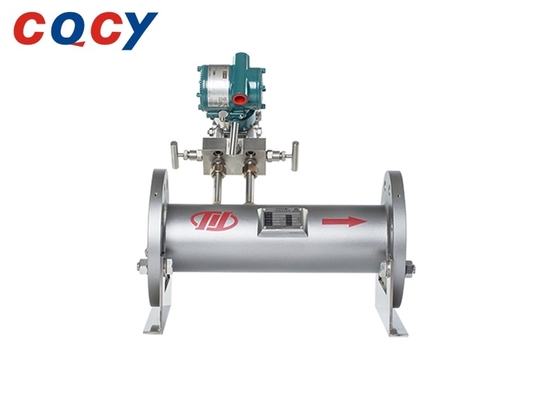

Dirty Fluid V Cone Flowmeter 0.25MPa To 42MPa V Cone Type Flow Meter

V Cone Flowmeter (Flow measurement of dirty fluid, such as coke oven gas, wet gas, etc)

      V-cone flowmeter is a differential pressure flowmeter with the same working principle as the standard throttle device. Its structure design is the fluid swept structure, it is impossible to intercept any gas, liquid or solid phase in the fluid, which is very suitable for the flow measurement of dirty fluid, such as coke oven gas, wet gas, etc. Especially in the measurement of blast furnace gas, there is a self-cleaning effect, the induced pressure pipe is not easy to block.

1.Self-rectification function requires only very short straight section (first 1 to 3 D after 2 D).

2.Self-cleaning function, can measure dirt and easy to scale fluid, suitable for blast furnace gas and other impurities in the medium.

3.Self-protection function, the key parts do not wear, can maintain long-term stable operation.

4.High accuracy, with + 1% of the indicated value.
