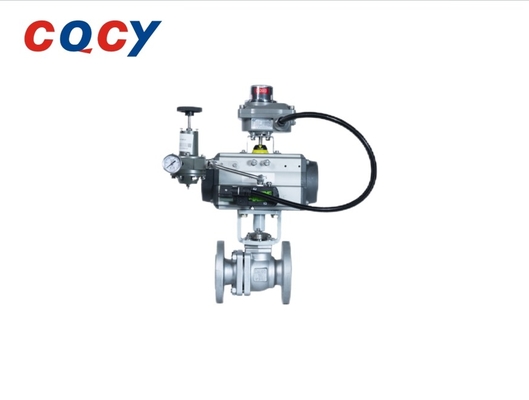

ZJHRF Lined Fluoroplastic O-Type Butterfly Valve corrosion resistance ForChemical industry）
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | ZJHRF Lined Fluoroplastic O-Type Ball Valve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.End-use Temperature | -20~+120;-40~+180 | 2.Inside Nominal Diameter | DN15~DN200(1/2"~8") |
|---|---|---|---|
| 3.Flange Standard | ASME B16.5 ; JIS B2201 ; HG/T 20592; HG/T 20615; JB/T 79.1 ; JB/T 79.2 ; GB/T 9112 | 4.Sealed Surface Type | FF、RF、MFM |
| 5.Connection Type | Flange Form | 6.nominal Pressure | PN 16、20; Class 150 |
| 7..Case Protection Grade | IP67 | ||
| Highlight | Butterfly Valve,Butterfly Valve,O Type Ball Valve |
||
Product Description
ZJHRF Lined Fluoroplastic O-Type Ball Valve (Good corrosion resistance and sealing properties/Chemical industry)
ZJHRF lining fluorine-plastic O-type ball valve adopts the international general standard design, and selects the highly reliable AT and AW series actuators. The valve has a compact structure, small volume, easy disassembly and maintenance, the inner cavity and sphere of the valve body are high pressure lining plastic process, lined with corrosion resistance, aging resistance of PFA polyvinyl fluoride (F46) or PFA this product has the characteristics of corrosion resistance and good sealing. The products are widely used in Chemical industry, petroleum, metallurgy, medicine, power and other industries, especially for the cutting of acid, alkali and other strong corrosion media in the production process.
1. Compact structure, small size, convenient disassembly and maintenance.
2, the fluid resistance is small, the valve lining wall is smooth, smooth flow channel is a relatively small fluid resistance in all valves
3. The chamber and sphere of the valve body are made by high pressure lining molding process, and the lining material is poly gas ethylene (F46) or PFA
With corrosion resistance, aging resistance and good sealing characteristics.
4. Anti-static device is provided between the valve body and the valve stem.
5, the ball core valve rod is an integrated design, eliminate the rotation angle difference, eliminate the pressure change caused by the valve rod out of the pressure parts
The fundamental guarantee of safety and reliability in use.
