ZJHR-1010 Soft Sealed Fixed O Ball Ball Valve PN16 PN20 High Viscosity
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | ZJHR-1010 Soft-Sealed Fixed O-Ball Ball Valve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.end-use Temperature | -45~+230 | 2.Flange Standard | ASME B16.5 ; JIS B2201;HG/T 20592 ;HG/T 20615; JB/T 79.1 ;JB/T 79.2 ; GB/T 9112 |
|---|---|---|---|
| 3..Sealed Surface Type | FF、RF、MFM、RJ | 4.Connection Type | Flange Form |
| 5.nominal Pressure | PN16、20、25、40、50、63、100、110;Class 150、300、600 | 6. Inside Nominal Diameter | DN15~DN600(1/2"~24") |
| Highlight | soft sealed ball valve,PN16 ball valve,PN20 fixed ball valve |
||
Product Description

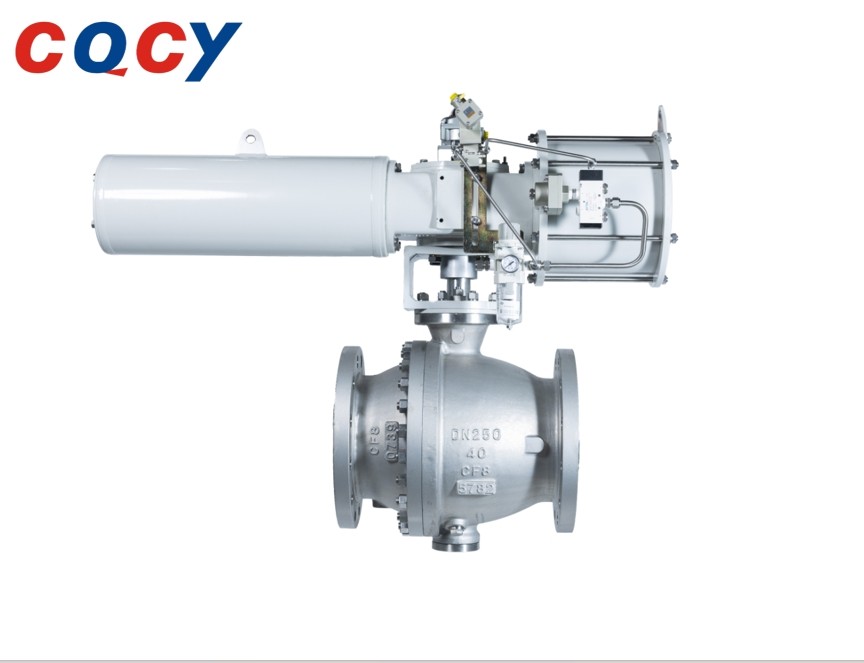

ZJHR-1010 soft-sealed fixed O-ball ball valve (Control for high viscosity, with fibrous and medium containing particles)
ZJHR-1010 soft seal fixed O-ball valve adopts the international general standard design, selects the widely used pneumatic actuator and electric actuator with high reliability, and has high reliability. It has compact structure, light weight, small volume, easy installation and maintenance; used to control high viscosity, fiber and particles containing particles.
1. The diameter of the sphere channel is the same as the pipe diameter, the flow path is smooth, the flow resistance is small, and the valve stem prevents the structure.
2. Fixed structure can realize the double resistance and double row function.
3. Soft valve seat adopts imported raw materials to ensure the quality of soft valve seat parts and product sealing performance.
4. Automatic pressure relief function. When the medium pressure of the stalled cavity in the valve rises abnormally over the pretension force of the spring, the valve seat retreats and exits the sphere to achieve the effect of automatic pressure relief. After the pressure relief, the valve seat is automatically reset.
5, the operation is labor-saving, the sphere is supported by the upper and lower bearings, reduce friction, eliminate the huge sealing load caused by the inlet pressure pushing the sphere and the sealing seat and cause excessive torque,
