Zjhv-110 Hard Sealed Fixed V Type Ball Valve Control For High Viscosity With Particle
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | Zjhv-110 Hard Sealed Fixed V-Type Ball Valve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/P, D/A, Western Union, T/T, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Operating Temperature | -45~+400 | 2.Flange Standard | ASME B16.5; JIS B2201; HG/T 20592; HG/T 20615; JB/T 79.1; JB/T 79.2: GB/T 9112 |
|---|---|---|---|
| 3.Sealing Surface Type | FF, RF, MFM | 4..Connection Type | Flange Type |
| 5.Nominal Pressure | PN 16, 20, 25, 40, 50; Class 150, 300 | 6.Nominal Diameter | DN25~DN400 (1 "~16") |
| 7. Levels Of Protection | IP65 | ||
| Highlight | Fixed Ball Valve,V Type Ball Valve,Control Valve with particle |
||
Product Description

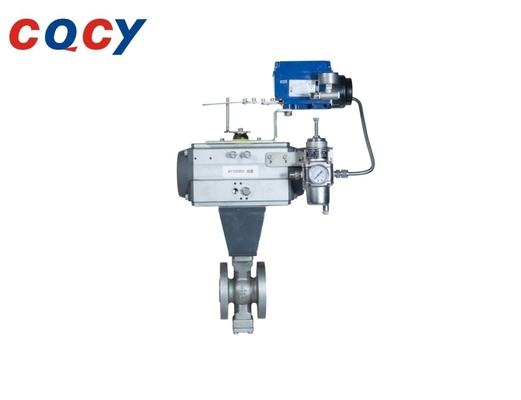

Zjhv-110 Hard Sealed Fixed V-Type Ball Valve (Control for high viscosity, with fibrous and medium containing particles
ZJHV-110 hard sealed fixed V-ball valve consists of a body component with a pneumatic or electric actuator. Its compact structure, light weight, small volume, convenient installation and maintenance. Smooth flow path, small flow resistance; good sealing performance, low leakage; high adjustable ratio. For for control controlling high viscosity, fibrous and containing particles. Widely used in electric power, chemical, paper, light industry and other industries.
1.Compact structure, small volume, integrated valve body structure, rigid structure, not easy to deform and leak.
2. The flow path is smooth and the flow resistance is small. The shear force between the V-shaped opening and the valve seat, as well as the smoothness and roundness of the valve chamber flow channel, make it difficult for the medium to pass throughTrapped in the inner cavity.
3. Equipped with both cutting and adjusting functions, with a large adjustable ratio, it can achieve small flow through special V-shaped openings for processingQuantity accuracy control.
4.Good sealing performance and low leakage.
