H100 Low Temperature Regulating Valve Precise Regulation Of Ultracold Media
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | H100 Low-Temperature Regulating Valve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Leakage Level | ANSIIV, Class V | 2. Type Of Attachment | Butt Welding And Flange Type |
|---|---|---|---|
| 3.Temperature Range | -196~+150 ℃ | 4.Inside Nominal Diameter | DN10~DN250 |
| 5.Nominal Pressure | Class150~Class1500 | 6. Levels Of Protection | IP65 |
| Highlight | H100 Low Temperature Regulating Valve,flange type Low Temperature Regulating Valve,water regulator valve flange type |
||
Product Description

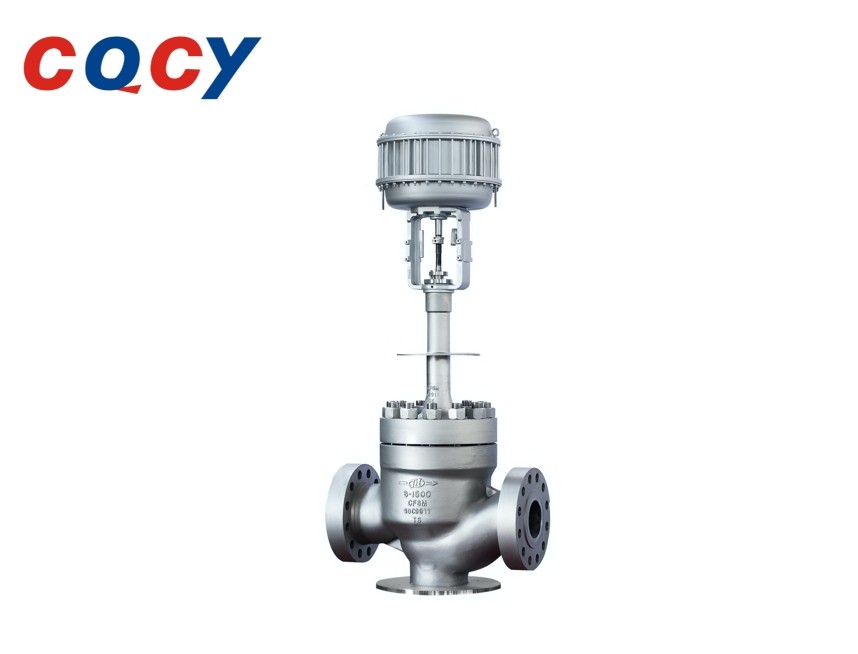

H100 Low-Temperature Regulating Valve ( Precise regulation of ultracold media)
(1) The valve flow channel is S-shaped, with small pressure drop loss, large flow rate and adjustable range of 50:1;
(2) The design of throttle components adopts CFD analysis and verification, the flow characteristics comply with GB / T 4213-2008 standard, and the flow characteristics have high accuracy,
(3) When the actuator has a locator, the return difference and the basic error are 1.5%, and the control accuracy of the regulating valve is high
(4) Use special combination filler to meet the requirement of microleakage less than 50ppm, and reduce the friction of the valve rod by about 20%
(5) The double sealing structure is adopted to realize the valve seat bidirectional class ANSI V leakage level, and the valve interior parts can be repaired online
