HVH Black Water Regulating Valve High Viscous Fluid Valve Mud And Multiphase Fluid
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | HVH Black Water Regulating Valve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Leakage Level | ANSI Class IV | 2.Connection Method | Flange Type |
|---|---|---|---|
| 3.Temperature Range | -45~+566 ℃ | 4.Nominal Diameter | DN25~DN400 |
| 5.Nominal Pressure | Class150~Class900 | 6. Levels Of Protection | IP65 |
| Highlight | HVH Water Regulating Valve,Black Water Regulating Valve,Multiphase fluid valve |
||
Product Description

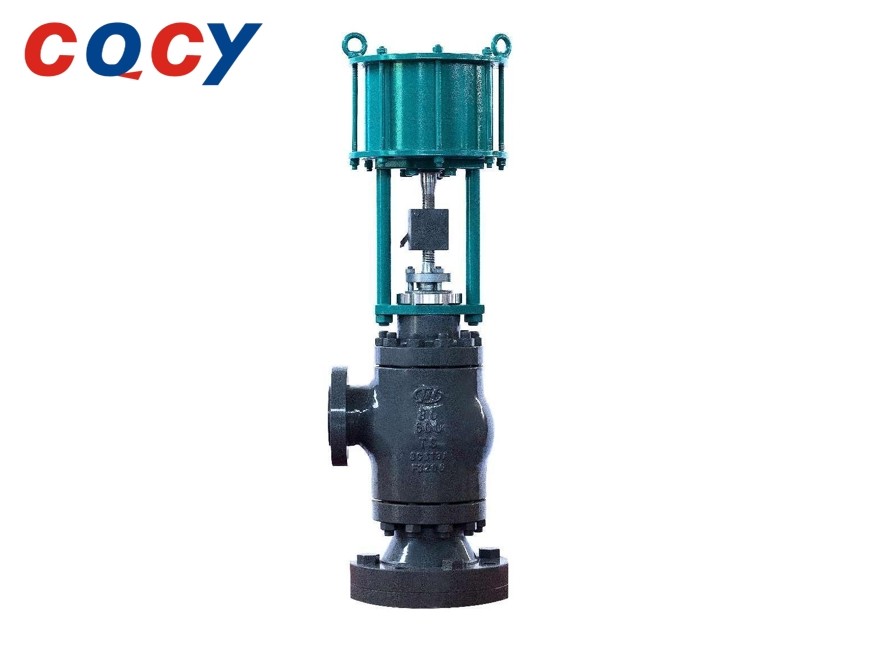

HVH Black Water Regulating Valve (High viscous fluid, mud, and multiphase fluid with hard particles)
Product features:
(1) The internal cavity size of the valve body is large, with a Venturi valve seat structure design and smooth flow channels. There is no residual part inside the valve body, with high flow capacity and anti clogging.
(2) The valve core and valve seat are spray welded or sintered with tungsten carbide, which is resistant to erosion.
(3) Can be designed as a structure capable of directional cleaning, or as a WC hard alloy protective sleeve structure.
(4) This valve has extremely low flow resistance and is particularly suitable for controlling high viscosity fluids, mud, and multiphase fluids containing hard particles.
