HPF Lined Fluoroplastic Regulating Valve Acid Alkali Strong Corrosive Media And Toxic

 HPF lined fluoroplastic regulating valve(Acid, alkali and other strong corrosive media and toxic,)

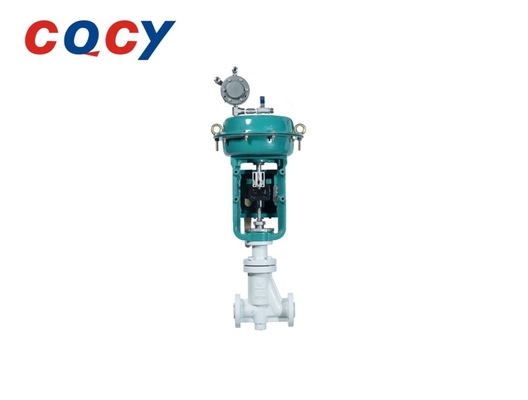

     HPF lining fluorine plastic regulating valve is a kind of corrosion-proof direct single seat regulating valve, and fluid contact valve body wall and valve components are using high pressure injection molding process, lined with corrosion-resistant, aging-resistant polyfluoroethylene propylene (F46), and using polyTFE bellows seal. It is widely used in the control of acid, alkali and other strong corrosive media and toxic, volatile and other gases and liquids.corrosion preventive. It can withstand the corrosion of almost all media (including concentrated nitric acid and royal water). Good sealing performance. Use bellows and packing double seal to ensure no external leakage. Small amount of leakage. Because the valve core and valve seat adopt soft seal, the leakage amount is low. With HA actuator, large output force, compact structure,

Product features:

1. The valve body flow channel and wall thickness adopt CAE structural strength analysis. To meet the minimum wall thickness design requirements and design strength, the weight should be reduced as far as possible and save cost with high economy.

2. The valve body flow channel is smooth and streamlined, easy to medium flow.

3. The valve body and the lining layer of the valve components and the medium adopt high pressure injection molding process, with good corrosion resistance and long working life.
