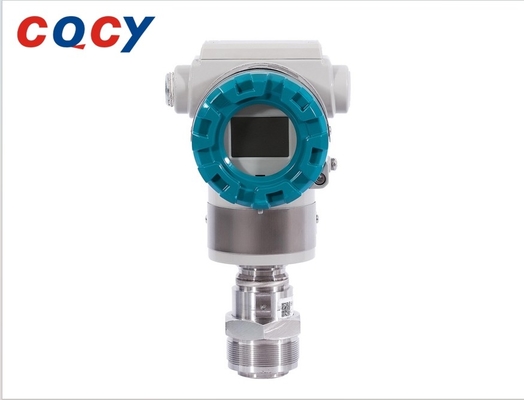

PDS813 Paper Type Pressure Transmitter (Papermaking And Other Easy Plugging Working Conditions)
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | PDS813 Paper-Type Pressure Transmitter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Accuracy | ± 0.04%FS (up To ± 0.025%FS) | 2. Range Ability | 0～6.3MPa |
|---|---|---|---|
| 3.Maximum Range Ratio | 30:1 | 4.stability | ±0.1％FS/10Year |
| 5.Protection Class | IP67 | 6.Process Temperature Range | -40℃～+120℃ |
| 7.Additional Certification | EU SIL Certification CE International Certification The CIS SIL Certification | ||
| Highlight | Paper Type Pressure Transmitter,IP67 Pressure Transmitter,wireless pressure transducer 6.3MPa |
||
Product Description
PDS813 Paper-Type Pressure Transmitter (Papermaking and other easy plugging working conditions)
PDS813 Is a high precision paper making pressure transmitter, with special process connection, pressure unit front, diaphragm and pipe wall, solve the problem of high viscosity medium easy to plug, can be used for paper making and other easy to plug, its function is to convert the detected pressure signal into 4-20mA d.c. current (Ruga HART, communication) or PROFIBUS-PA communication signal, FF communication signal, WirelessHART, ZiqBee wireless communication signal output: can achieve remote setting, monitoring and other functions through communication equipment.
Product features:
1.Intelligent diagnosis and simulation.
2.Diversified configuration methods.
3.Authoritative certification.
4.High stability.
