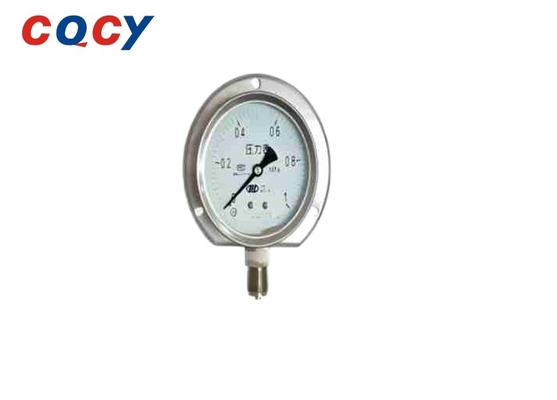

ExdIIBT4 YTH-100 Pressure Instrument For Solidification Tendency And Corrosion-Free Measurement
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 /IEC Ex /ATEX /CE /NEPSI |
| Model Number | YTH-100 Pressure Instrument |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Case | 304S.S.(316LS.S.available) | 2.Anti-hazard Classification | Meet The Explosion-proof Requirements Of ExdIIBT4 |
|---|---|---|---|
| 3.Case Protection Grade | GB 4208 Idt IEC529 IP66 IP54, Other Protective Capability | 4.Product Characteristics | It Is Suitable For Measuring The Positive Pressure, Negative Pressure Or Positive And Negative Pressure Of Liquid And Gas Without Explosion, Crystallization, Solidification Tendency And Without Corrosion Of Austenitic Stainless Steel. |
| Highlight | Solidification Tendency Pressure Instrument,ExdIIBT4 Pressure Instrument,Corrosion-Free Pressure Instrument |
||
Product Description
The shell part adopts sealed safe front sealing structure, with higher protection level and weather resistance, adapted to open or harsh use conditions. The safety explosion isolation plate (strong front) and the safety relief back cover, combined with the laminated safety glass, improve the safety protection level of the personnel on the front of the instrument under abnormal overpressure conditions.

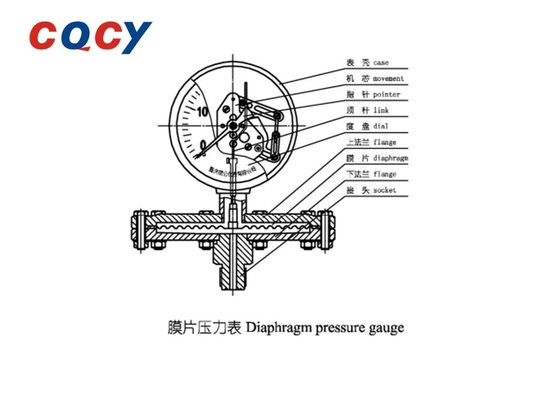

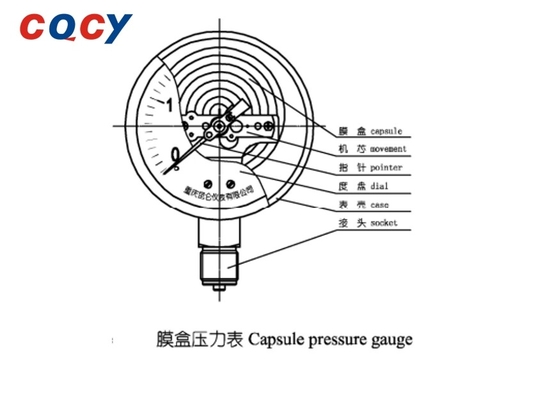

The shell part adopts the sealed safe front sealing structure, and the measuring part takes the round film box as the elastic sensitive element, filled with low viscosity damping oil, so that the measuring mechanism has the ability to resist the vibration of the working environment or the medium pressure pulsation. Diaphragm separator can be divided into flanged type, threaded type, clip type, nut type according to its connection mode.
