HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature

  • HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature
  • HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature
  • HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature
  • HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature
  • HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature
Place of Origin Shanghai, China
Brand Name CQCY
Certification CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI
Model Number HTS-10000 Quick Change Single Seat Regulating Valve
Minimum Order Quantity 1set
Price USD+50 dollars to 1000 dollars+1set
Packaging Details Carton packing
Delivery Time 10-30 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000+1set+per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
1.Connection Type Flange Type: FF, RF, RJ (RTJ), TG, MFM; Welding Type: SW, BW 5.nominal Pressure/Class 150、300、600、900、1500、2500;PN16、20、25、40、50、63、100、110、150、160,220、250、260、320、420 2.Operating Temperature Normal Temperature Type (P): -45~+250 ℃, Elongation Type (El):+250~+566 ℃, Elongation Type (EII): -100~-45 ℃
3.Protection Level IP65 4.Nominal Diameter 32、40、50、65、80、100、125、150、200、250、300、350、400、450、500、600mm
5.Nominal Pressure Class 150、300、600、900、1500、2500;PN16、20、25、40、50、63、100、110、150、160,220、250、260、320、420
Highlight

Quick Change Regulating Valve

,

Single Seat Regulating Valve

,

flow control valves Class 150
Leave a Message
Product Description

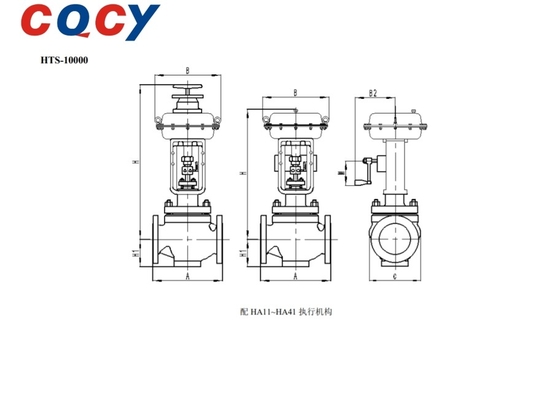

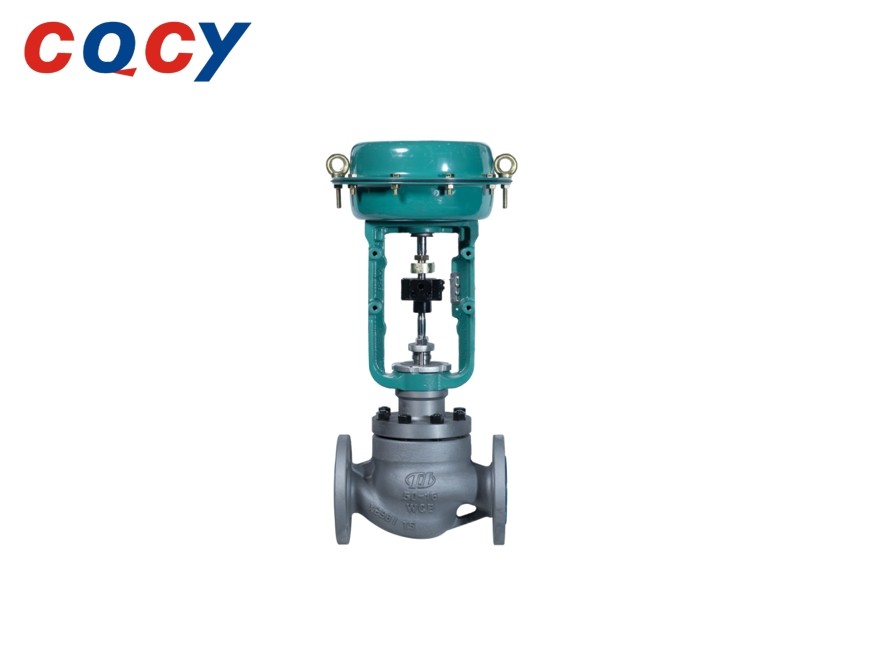

HTS-10000 Quick Change Single Seat Regulating Valve (High temperature, low temperature and low pressure difference)



     HTS-10000 fast change single seat regulating valve core adopts the upper guide structure, the valve body structure is compact, the fluid channel is S type, with small pressure drop loss, large flow, wide adjustable range, high flow characteristics, in line with IEC60534-2-1-2011 standard. The leakage of the regulating valve meets ANSIFCI70-2-2013 standard regulating valve with multi-spring film or cylinder actuator, its compact structure and large output force. HTS-10000 type regulating valve is more suitable for high temperature, low temperature and low pressure differential conditions requiring high reliability and closing performance. Special requirements can be specially customized.HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature 0HTS-10000 Quick Change Single Seat Regulating Valve High Temperature Low Temperature 1

Product features:



1. Adopting a quick change valve seat for easy maintenance.



2.The surface of the valve core adopts CAE flow simulation analysis to ensure the accuracy of flow regulation.



3. The valve body flow channel and wall thickness are analyzed using CAE structural strength analysis, while meeting the design requirements and strength of minimum wall thicknessReduce quantity and weight to save costs, with high economy.



4. The packing adopts a disc spring dynamic loading structure, with good sealing performance, strong wear resistance, and long service life.



5. The sealing surface of the valve core and valve seat can be welded with hard alloy, which has good erosion resistance and wear resistance.
