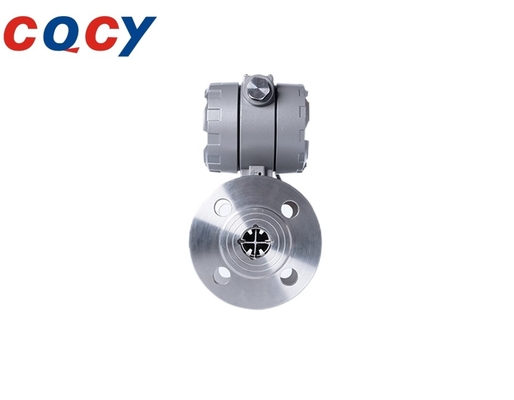

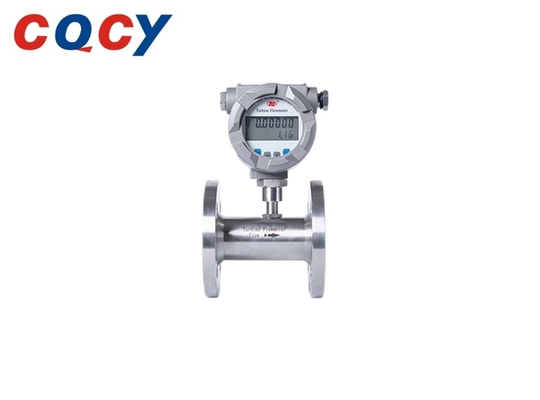

TFC Type Turbine Flow Meter Gas Turbine Flowmeter For Coal Gas Ammonia Gas
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | TFC type gas turbine flowmeter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Medium Temperature | -30℃~80℃ | 2. Accuracy Class | 1.0\ 1.5 |
|---|---|---|---|
| 3.lmpeller Material | Aluminum Alloy And ABS Plastic | 4.Calibration Range | DN20-DN400 |
| Highlight | TFC Type Turbine Flow Meter,Turbine Flow Meter For Coal Gas,gas turbine flowmeter for Ammonia Gas |
||
Product Description
TFC Type Gas Turbine Flowmeter (Natural Gas, Coal Gas, Ammonia Gas, Carbon Dioxide And Other Chemical Gas Media)
TFC gas turbine flowmeter (hereinafter referred to as flowmeter) is a collection of flow, pressure, temperature detection function, can temperature, pressure, compression factor automatic correction intelligent flowmeter, is our company of advanced technology, the optimization design, integrated the gas mechanics, fluid mechanics, electromagnetism and other theory and development of high precision, high precision reliability of gas precision meter, with excellent low voltage and high voltage metering performance, a variety of signal output mode and low sensitivity to fluid disturbance. The flowmeter is suitable for the measurement of natural gas, gas, gas, ammonia, carbon dioxide and other chemical gas media in petroleum, chemical, steel, metallurgy, light industry, environmental protection and municipal construction industries.
Product features:
1.Microcomputer chips and software technoloay are adopted to endow the instrument with powerful inteligent functions. t has the functionof zero setting and range adiustment (for temperature and pressure), and automaticaly tracks and compensates the pressure andtemperature,with excellent performance.
2.This flowmeter has good low flow velocity characteristics, low requirements for the length of the front and rear straight pipe sections ofinstruments (10D for the front section and 5D for the rear section), convenient operation, and low installation cost.
3.Using micro-power design technology, which can be powered by a lithium battery, and run by external power supply, the whole power consumption is low.
4.The integrated design technology of mechanical, electrical, and instrument is adopted to integrate various signal detection and processing,flow integration and compensation, display, and communication.
5.Using imported instrument special bearing, high accuracy, good stability, long life.
