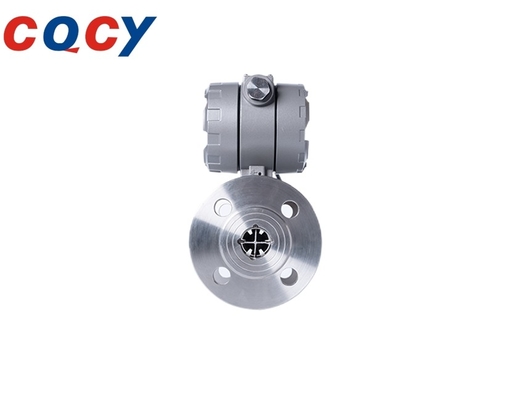

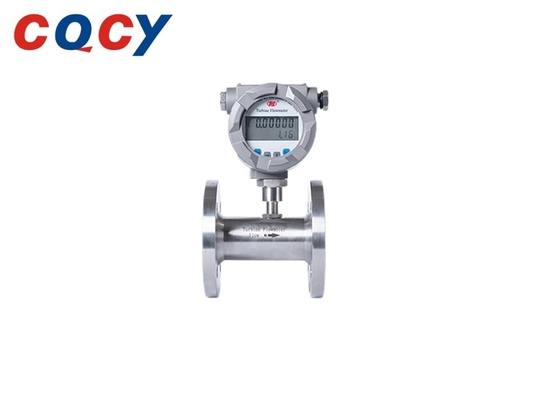

Liquid Turbine Flow Meter TFC Type Turbine Water Meter For Petroleum Chemical Industry Metallurgy
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | TFC Type Liquid Turbine Flowmeter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Impeller Material | 2Cr13, Duplex Stainless Steel, And ABS Plastic | 2. Pressure Grade | 1.6MPa~6.3MPa |
|---|---|---|---|
| 3.Accuracy Class | 0.5\1.0 | 4.Diameter Range | DN4-DN200 |
| 5.High Accuracy | Generally Can Reach ± 1%R, ± 0.5%R, High Precision Model Can Reach + 0.2%R. | 6.. The Range Is Wider Than | Maximum Range Ratio Can Reach 1:20 |
| Highlight | Liquid Turbine Flow Meter TFC Type,Turbine Flow Meter For Petroleum,turbine water meter for Chemical Industry |
||
Product Description
TFC Type Liquid Turbine Flowmeter (Petroleum, chemical industry, metallurgy, water supply, paper making
TFC type liquid turbine flowmeter (hereinafter referred to as flowmeter) is optimized to absorb the advanced technology of flow meter at home and abroad. The flowmeter is a new generation of simple, light, high precision, good repeatability, sensitive response, convenient installation and maintenance: it is widely used in measuring closed pipe and stainless steel 304,2 Cr 13 and cordum A1203 hard alloy, has no corrosion effect, and no fiber, particles and other impurities, and the working temperature motion viscosity is less than 5x10-6 m2/s liquid, for the motion viscosity is greater than 5x10-6 m2/s liquid, can be used after real liquid calibration, is petroleum, chemical, metallurgy, water supply, paper making and other industry flow measurement and energy saving ideal instrument.
Product features:
1.High accuracy: generally up to +1%R and +0.5%R, and up to +0.2%R for high accuracy type.
2. Good repeatability, and short-term repeatability can reach 0.05%~0.2%.
3.Output pulse frequency signal, suitable for total metering and computer connection, no zero drift, strong anti-interference ability.
4.Range ratio width, maximum range ratio of 1:20,
5.Compact and light structure, convenient installation and maintenance, large circulation capacity.
