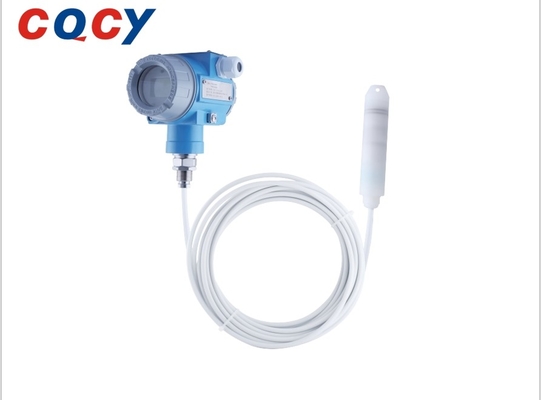

CYW71C Anti-corrosion type input Liquid level transmitter (Measurement of a corrosive liquid/4~20mA, hart, RS485
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | CYW71C Anti-corrosion type input Liquid level transmitter |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Range | 0~20~200kPa | 2.Out Put | 4~20mA、4~20mA HART、RS485 |
|---|---|---|---|
| 3.Power Supply | 9~28VDC、13~28VDC、15~28VDC、15~24VDC | 4.Accuracy | 0.5%FS |
| 5.Measurement Medium | Fluid Compatible With The Contact Material | 6.Medium Temperature | -40~60℃ |
| 7.Explosion-proof Type | Burst Proof Ex Db IIC T6 Gb Blow Proof Dust Ex Tb IIIC T80℃ Db Intrinsically Safe Ex Ia IC T6 Ga (only 4 ~ 20 MA Output) Dust Intrinsically Safe Ex IaD 20 T80℃ (only 4 ~ 20 MA Output Only) Note: Intrinsically Safe Must Be Supplied Through The Safety Grid O | 8.Stability Energy | Si 0.2% FS / Year |
| Highlight | RS485 Liquid level transmitter,4~20mA Liquid level transmitter,hart Liquid level transmitter |
||
Product Description
CYW71C Series of liquid level transmitter products use the 0EM pressure sensor with ceramic piezoresistivity as the signal measurement element, and through the computer automatic test, using the laser resistance control process for the wide temperature range of zero and sensitivity temperature compensation. The probe shell is made of PVDF anti-corrosion material, the sealing ring is made of fluorine glue, and the transmission cable is made of tetrafluoride material, which has excellent anti-corrosion performance.
