FR 180mm Recording Instrument Voice Recorder Instrument Multi Channel
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/ CE / NEPSI |
| Model Number | FR Has Paper Recorder |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Paper Speed | 10mm / H-1500mm / H, Arbitrarily Set | 2.Measuring Period | 128ms/ Channel |
|---|---|---|---|
| 3.Record Paper Form | Folding | 4.Precision Accuracy | +0.1%FS |
| 5.Record Width | 180mm | ||
| Highlight | FR Recording Instrument,180mm Recording Instrument,voice recorder instrument multi channel |
||
Product Description

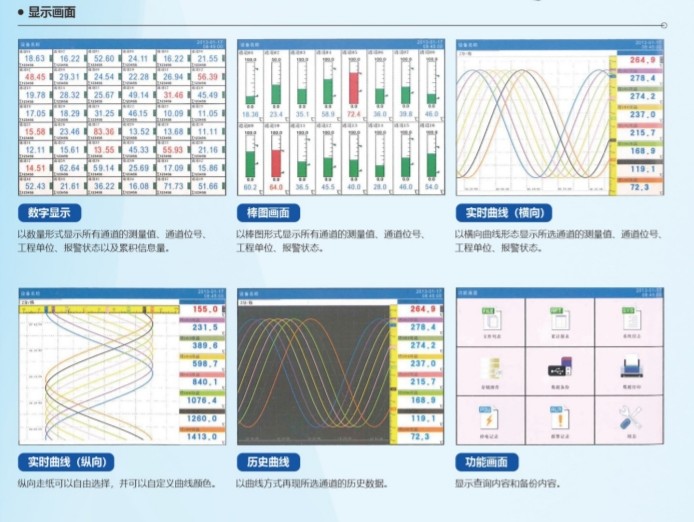

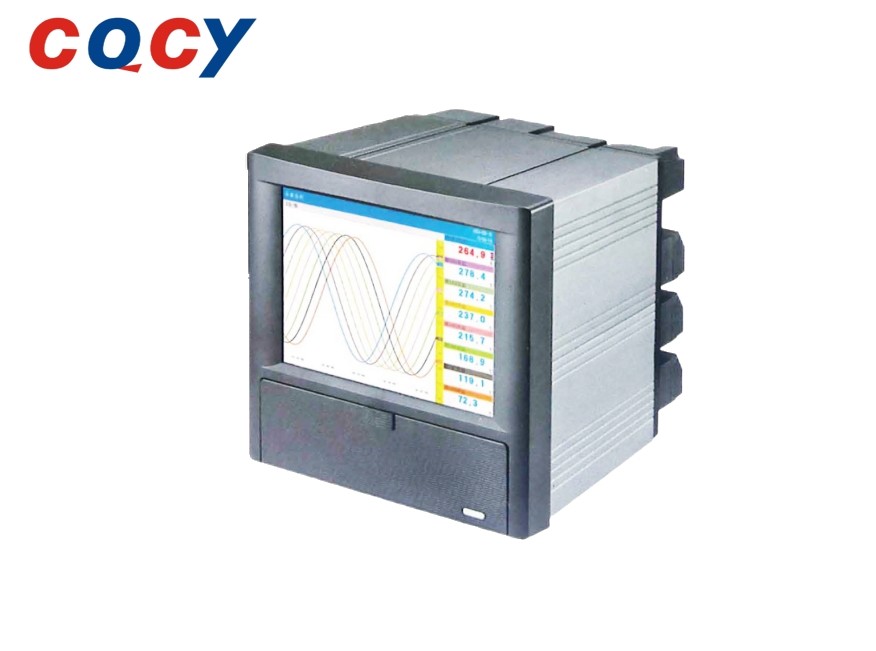

FR Has Paper Recorder (Large font display, range segment mode, support multi-channel display at the same time)

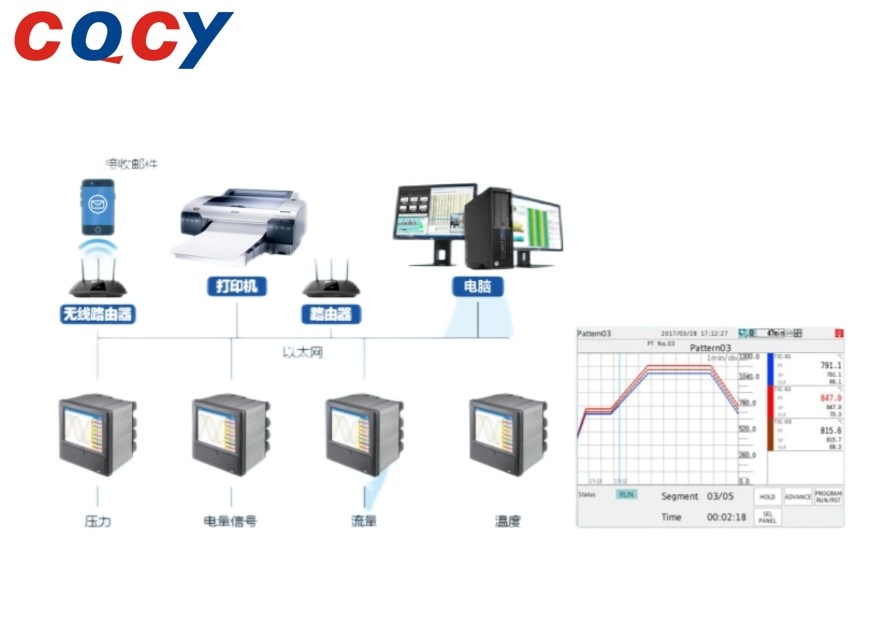

FR series intelligent paper recorder, support super-large font display, range segment mode, support multi-channel display at the same time, support Chinese menu display. Maxto 24 mixed signal input, thermocouple, thermal resistance, DC voltage, DC current, extended U disk storage, Ethernet communication, 2 DI remote input, 24V distribution input, 1 RS485 communication, 24 relay alarm output.
1. The range can be segmented, scaled and translated, which can meet the accuracy requirements of instruments in different fields.
2. Use a paper recorder with color to record long-term, true and reliable.

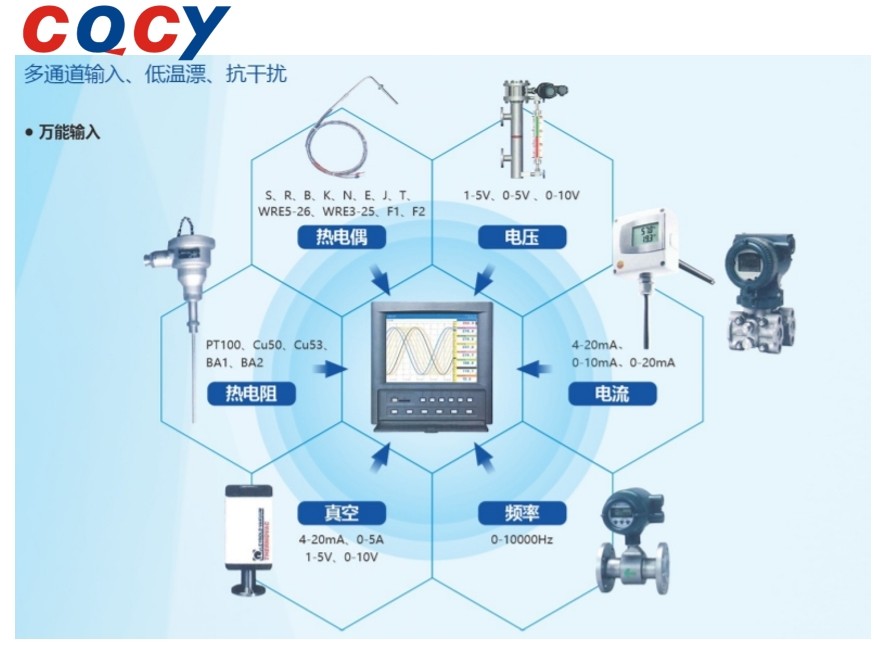

3. Universal input mode, which can meet the user's requirements for different signal input,
4 Color LCD touch screen, support Chinese display.
5. Lighting mode, without additional light source, to make the record display clearer.
6. Additional functions of the product are highly scalable and can be added flexibly.
7. Phoenix plug-in terminals have high maintenance efficiency.
8. Meet the requirements of AMS2750E, meet the requirements of high resolution in range segment mode,
