Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | Temperature Gauge Protection Sleeve |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Installation Mode | 1.thread Installation, Welding Installation, Flange Installation | 2. Using Pressure | 50 MPA (Max)(material And Structure According To The Medium Determine) |
|---|---|---|---|
| 3.Typical Material | 20 # , 304,316,316L, 347... | 4.Installation Interface | Thread M20x1.5, M27x2, M33x2, Flange GB / 9119, HG / T20592, ASME16.5... |
| Highlight | flange mounting Temperature Instrument,Temperature Instrument Welded installation,protection sleeve thread installation |
||
Product Description

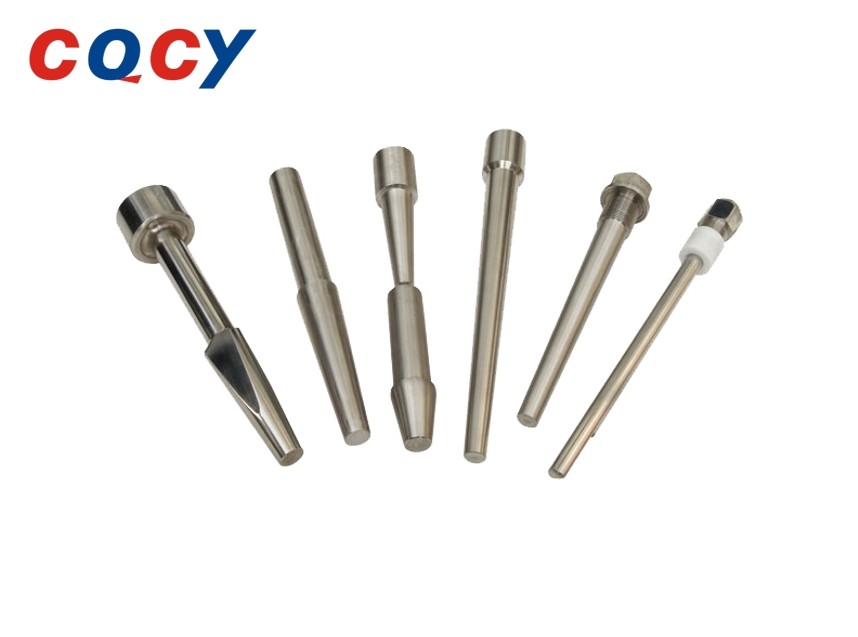

Temperature Gauge Protection Sleeve(Welded installation, thread installation and flange mounting construction)
The thermometer supporting protective sleeve is rich in material, welding installation, thread installation and flange installation structure, structure design is reasonable, installation methods are diverse, to meet the overall design needs. The working conditions involve high flow rate and high pressure, and the measuring medium is flammable, explosive and toxic. The strength accounting is conducted by ASME PTC19.3TW standard, and the bottom and wall thickness of the pipe are measured nondestructive tively by X-ray (RT), and the liquid penetration (PT) nondestructive testing and hydraulic test on the surface or weld of the contact medium to ensure the safe use in the later stage.
1.Diverse structural types meet temperature measurement needs.
2.Rich in materials, suitable for installation and temperature measurement environments.
3.Safe to use, using PTC19.3TW strength calculation.
4.Inspection of bottom concentricity and thickness of X-ray tubes.
