8 Channel AL Module Quasi Input Block Of Distributed Control System
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | AL Module |
| Minimum Order Quantity | 1set |
| Price | USD/+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Power Supply | System: 1 W @ 24 Vdc + 10%; Site: 5 W @ 24 Vdc ± 10% | 2.Communication Performance | Agreement: RS-485, MODBUS RTU Extension Protocol; Rate: 691.2kbps |
|---|---|---|---|
| 3.Channel Performance | Quantity: 8 Channels; Type: 4 ~ 20 MA Current Input: Precision: 4 ~ 20 MA: + 0.10% | ||
| Highlight | 8 Channel Hardware Configuration Programming,Control System Hardware Configuration Programming,AL Module Quasi Input |
||
Product Description

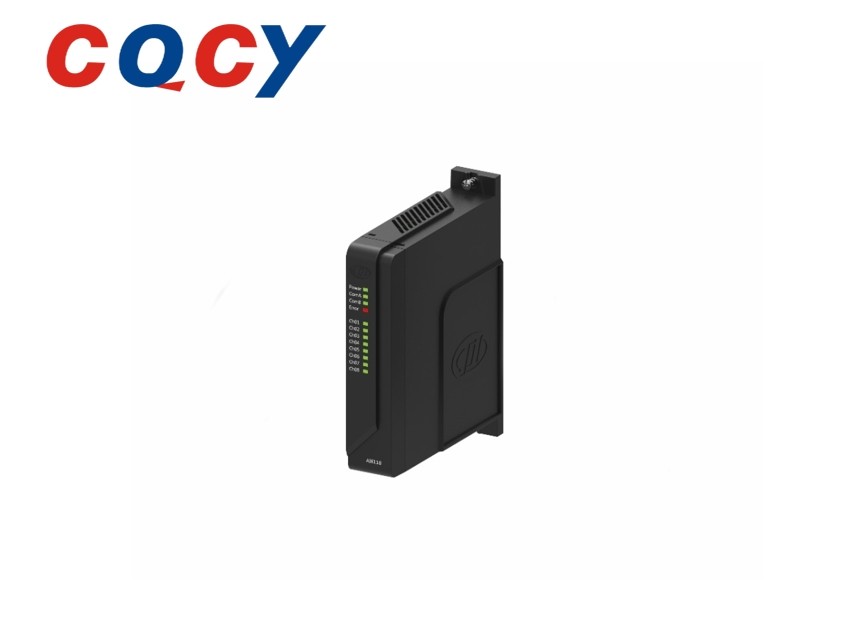

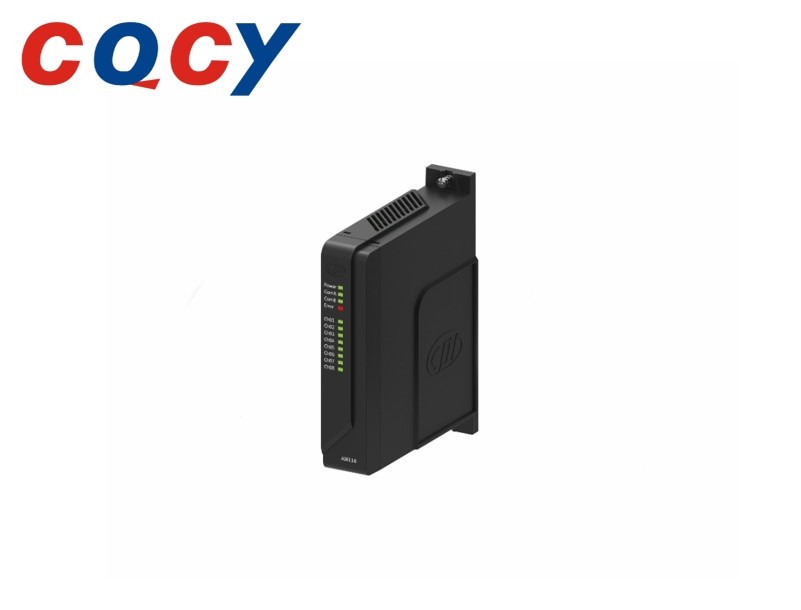

AL Module (8-channel quasi input block of the distributed control system)
The" AI module " is an 8-channel analog input block of the PAS300 distribution control system. A 24-bit high-speed A / D converter is selected to centralized detect the 84-20 mA standard signal input channels. After transforming the sampled data, the sampled data is transmitted to the intelligent communication module through the bus bus, and then exchanged data with the control station through the system bus.
Product features:
1.With the microprocessor (MPU), programmable communication controller and non-volatile memory (E2PROM) as the core, the 24-bit high-speed A / D converter is selected.
2.Each input channel provides two working modes of power distribution and no power distribution; both overcurrent / overvoltage protection circuit and EMI circuit are provided
3.Support hot plug; online diagnosis; signal disconnection detection function.
4.The panel has an LED function indicator to display the module power supply, communication, fault status and the status of each channel
5.The module is based on the Modbus communication protocol: it adopts the field power supply and the system power supply isolation power supply design
