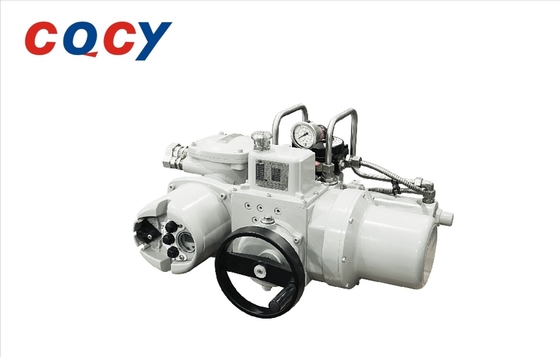

Exd ATEX Electric Actuators Executing Agenc Explosion Proof Protection For Zone1 And Zone 2
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | CQCY |
| Certification | CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI |
| Model Number | CR series intelligent electro-hydraulic angle stroke |
| Minimum Order Quantity | 1set |
| Price | USD+50 dollars to 1000 dollars+1set |
| Packaging Details | Carton packing |
| Delivery Time | 10-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000+1set+per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| 1.Regulating Frequency | 1,800 Times / H | 2. Thrust Range | 10KN~3500KN |
|---|---|---|---|
| 3.Torque Range | 1 KN.m~400KN.m | 4.Anti-hazard Classification | Exd IIBT4Gb ,Exd IICT4Gb |
| 5.Ambient Temperature | Standard Type: -25℃ ~ + 70℃, Low Temperature Type: -45℃ ~ + 70℃ | 6.Output Singal | Multi-configuration State Signal (8), 4-20 MA Valve Position Signal |
| 7. Levels Of Protection | IP66、IP67、IP68 | 8.incoming Signal | Switching Quantity Signal (5 Channels), 4-20 MA Analog Quantity Signal |
| Highlight | Exd Executing Agency,Executing Agency Explosion Proof,ATEX Electric Actuators |
||
Product Description
CR angle travel series is suitable for butterfly valve, ball valve, windshield baffle and other regulated mechanism electrohydraulic actuator is faster, more accurate and longer life than electric actuator is more compact, more accurate and more stable than pneumatic actuator.
Product characteristics:
1. Power loss safety and power loss action
2. Section-speed regulation function
3. Fire identification and protection function
4 0.2% control accuracy, 3Hz frequency response
5.Up to 0.5 seconds of quick switch function
